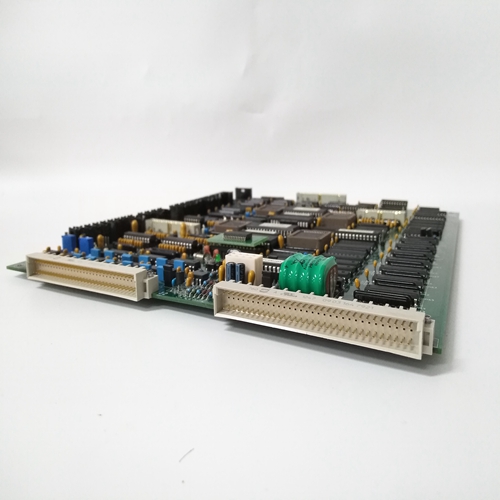

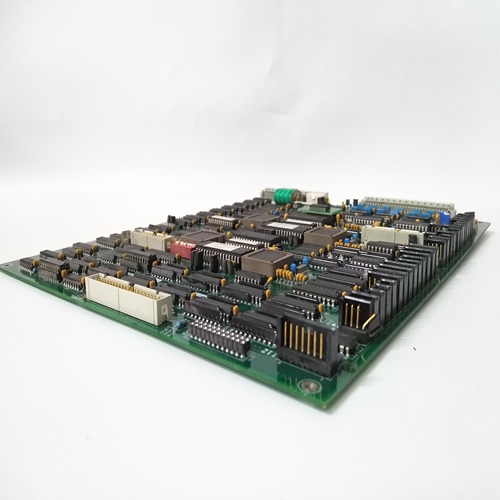

ELEMASTER 3110050機器人模塊
保護系統的應用中提供了許多不同的保護功能永久存儲在RE中的軟件。216系統。這個保護特定設備所需的功能可以是單獨的選擇、激活和設置。特定保護功能可以：可在不同的保護方案中多次使用。如何信號將由中的電廠保護裝置處理跳閘、信號和邏輯分配等問題
各種輸入和輸出的信號也由以下因素決定：適當?shù)嘏渲密浖?/p>
系統硬件在結構上是模塊化的。數量實際安裝的電子設備和I/O單元，例如：
增加保護功能的數量，或出于以下目的：冗余度可以根據特定設備的要求而變化。
由于其模塊化設計和選擇的可能性通過配置軟件實現保護和其他功能
發電機保護REG 216可適用于該保護小型、中型和大型發電機以及大型電動機，電力變壓器和饋線，而控制單元REC 216能夠進行數據采集、控制和監控在中壓和高壓變電站中的功能。其他相關文件
系統和電子設備的一般說明
安裝的I/O單元和相應的技術數據如下：數據表1MRB52004 Ben“REG 216型和REG 216型緊湊型發電機保護”。每個RE。216保護系統的設計旨在滿足相關設備的特殊要求。一組特定的為每個安裝提供了圖表，其中定義了與安裝的電子設備和I/O單元、其位置和內部布線相關的系統。成套設備圖包括：保護單線圖：完整表示設備的c.t.和v.t.連接到保護
標準電纜連接：方框圖顯示保護設備布線（電子設備機架至I/O單元）。
保護柜布局：安裝和位置電子設備和I/O單元。
電子機架布局：機架內的設備位置。
測量電路（三相設備圖）：c.t和v.t與保護的連接。
輔助電源：外部連接和內部配電輔助直流電壓源。
I/O信號：外部連接和內部接線跳閘和信號輸出以及外部輸入信號。
Application of the protection system
A number of different protection functions are provided in the
software permanently stored within the RE. 216 system. The
functions required to protect a specific plant can be individually
selected, activated and set. A particular protection function may
be used several times in different protection schemes. How the
signals are to be processed by the protection for the plant in
question such as the assignment of tripping, signalling and logic
signals to the various inputs and outputs is also determined by
appropriately configuring the software.
The system hardware is modular in structure. The number of
electronic devices and I/O units actually installed, for example, to
increase the number of protection functions or for purposes of
redundancy, can vary according to the requirements of the particular plant.
Because of its modular design and the possibility of selecting
protection and other functions by configuring the software, the
generator protection REG 216 can be adapted for the protection
of small, medium and large generators as well as large motors,
power transformers and feeders, while the control unit REC 216
can perform data acquisition and control and supervision
functions in medium and high-voltage substations.Other relevant documents
A general description of the system and the electronic devices
and I/O units installed and the corresponding technical data are
to be found in data sheet 1MRB520004-Ben "Type REG 216 and
Type REG 216 Compact Generator Protection".
Each RE. 216 protection system is engineered to fulfil the particular requirements of the plant concerned. A specific set of
diagrams is provided for each installation, which defines the
system with respect to the electronic devices and I/O units installed, their locations and the internal wiring.The set of plant diagrams includes:
single-line diagram of the protection: complete representation
of the plant showing the c.t. and v.t. connections to the
protection.
standard cable connections: block diagram showing the
protection equipment cabling (electronic equipment racks to
I/O units).
protection cubicle layout: installation and locations of the
electronic equipment and I/O units.
electronic rack layout: equipment locations within a rack.
measurement circuits (three-phase plant diagram): connection of the c.t's and v.t's to the protection.
auxiliary supply: external connection and internal distribution
of the auxiliary d.c. voltage supply.
I/O signals: external connection and internal wiring of the
tripping and signalling outputs and the external input signals.
