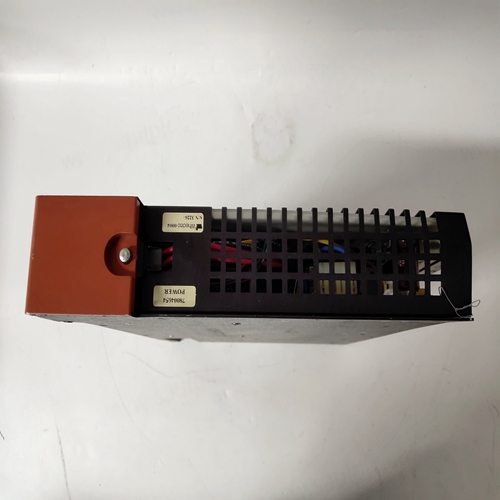

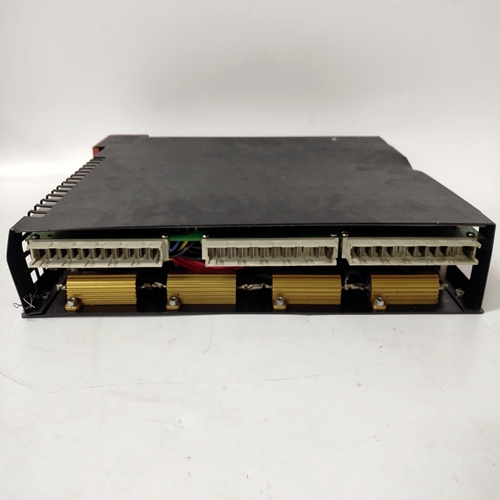

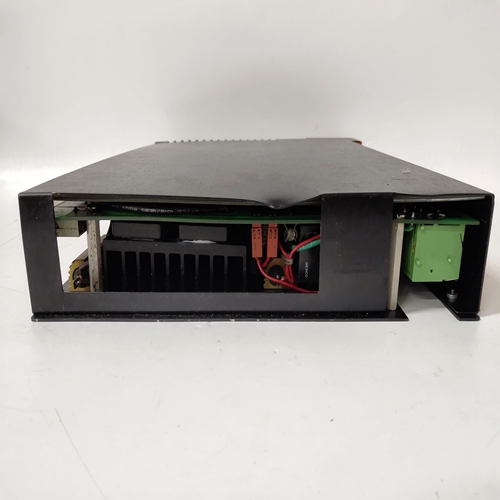

GE TARGET 78004654模塊
可拆卸配置板
可移動配置板（RCB）可以安裝在此控制器16中。它保留了安裝RCB的控制器使用的配置。如果該控制器發生故障，RCB可以：已卸下并安裝在替換控制器中。然后，可以將存儲的配置選擇為活動配置控制器中的配置。通電后，控制器將測試RCB，并將RCB中存儲的配置與控制器的配置進行比較配置如果RCB通過所有測試且配置相同，控制器將正常通電并使用來自MPU板的配置。如果檢測到問題或配置不同，將顯示聯機狀態或脫機錯誤消息。有關信息，請參閱維護部分。
9.5實時時鐘/配置備份板
控制器具有可選的實時時鐘和配置備份板17
備份執行與上述RCB相同的功能。此外，該板還包括一個實時時鐘。
可以使用STATN參數中的內置時鐘功能塊設置時間。它也可以設置在Modbus、LIL或以太網。
10.0控制器和系統測試
本節介紹了一系列步驟，以驗證控制器的操作，并幫助用戶熟悉
控制器的功能。新的控制器出廠時配置為出廠配置
選項FCO101單回路控制器或用戶指定的自定義配置。以下程序適用于：
具有出廠設置參數值的FCO101。如果安裝了自定義配置，或者如果已配置
控制器，可能需要修改程序以測試該配置中的所有功能塊。
要確定控制器的當前配置，請執行以下任一操作：
?請參閱該控制器的配置文檔
?將配置上傳到運行圖形配置軟件的PC上，其中可以進行配置查看
?進入配置模式，逐步完成配置，記錄配置的功能塊和
輸入的參數值
在以下步驟中，“按下”表示面板按鈕（鍵）。
10.1控制器配置和測試
本節的目的是配置和測試控制器，并讓用戶熟悉控制器的
面板按鈕、脈沖發生器和顯示器。本節還介紹了幾個配置主題。
10.1.1連接和電源
1.將電源連接到控制器。型號參考控制器銘牌，然后參考第14節
本手冊適用于電源要求。有關連接，請參閱第8節“安裝”。
REMOVABLE CONFIGURATION BOARD
The Removable Configuration Board (RCB) can be installed in this controller16. It retains a complete copy of the
configuration being used by the controller in which the RCB is installed. Should that controller fail, the RCB can be
removed and installed in the replacement controller. The stored configuration can then be selected as the active
configuration in the controller.
On power up, the controller will test the RCB and compare the configuration stored in the RCB to the controller’s
configuration. If the RCB passes all tests and the configurations are identical, the controller will power up normally
and use the configuration from the MPU board. If a problem is detected or the configurations are different, an ONLINE STATUS or OFF-LINE ERROR message will be displayed. See the Maintenance section for messages.
9.5 REAL TIME CLOCK/CONFIGURATION BACKUP BOARD
The controller is available with an optional real time clock and configuration backup board17. The configuration
backup performs the same functions as the RCB described above. In addition, the board includes a real time clock.
The time can be set using the built-in CLOCK function block in the STATN parameters. It can also be set over the
Modbus, LIL, or Ethernet network.
10.0 CONTROLLER AND SYSTEM TEST
This section presents a series of steps to verify controller operation and to help a user become familiar with the
functionality of the controller. A new controller is shipped factory configured with either Factory Configured
Option FCO101 Single Loop Controller or a user-specified custom configuration. The following procedure is for
FCO101 with factory set parameter values. If a custom configuration was installed, or if you have configured the
controller, it may be necessary to modify the procedure to test all function blocks in that configuration.
To determine the current configuration of a controller, either:
? refer to your configuration documentation for that controller
? upload the configuration to a PC running the Graphical Configuration Software where the configuration can be
viewed
? enter the configuration mode and step through the configuration recording the configured function blocks and
entered parameter values
In the following steps, ‘press’ indicates a faceplate button (key).
10.1 CONTROLLER CONFIGURATION AND TEST
The purpose of this section is to configure and test the controller and to familiarize the user with the controller’s
faceplate pushbuttons, pulser, and displays. This section also introduces several configuration topics.
10.1.1 Connections and Power
1. Connect power to the controller. Refer to Controller nameplate for model number and then to Section 14 of
this manual for power requirements. Refer to Section 8 Installation for connections.
