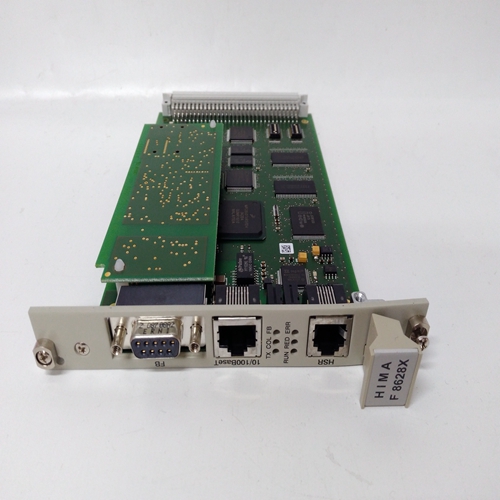

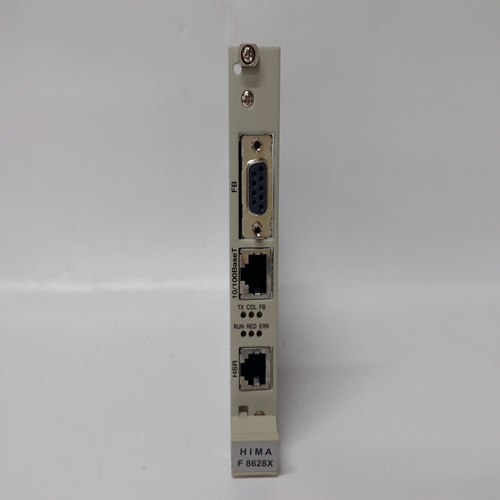

HIMA F8628X處理器模塊
將I/O擴展器板添加到標準機箱時（機箱選項2，帶黑邊條目連接器），訂購連接器套件PN 16353-133以獲得端子27-52。
?將I/O擴展器板添加到帶有以太網連接器的標準機箱時（機箱選項4，灰色或綠色直接進入連接器），無需訂購其他連接器。
?有關該套件的現場安裝，請參閱提供的套件安裝說明（15900-390）。
描述數量
I/O擴展器板-請勿將板從靜電屏蔽中移除
裝袋，直到安裝完畢。
1.量程電阻器和參考接線盒，見下文1
PN16353-49量程電阻器和參考接線盒-該套件與上述I/O擴展器一起提供板套件和出廠的Moore 353，帶擴展板選項1。配置概述
配置允許用戶從可用列表中選擇存儲在控制器中的功能塊，然后輸入以實現特定的控制策略。雖然配置會影響整個站，控制器將相關的控制實現劃分為循環。最多可以有99個循環
配置和25可以具有映射到網絡通信2的操作員顯示器
每個循環可以包含以下段落中列出的功能塊。信號可以連接在
循環內以及循環之間的功能塊。此外，還有幾個車站功能塊：
是固定的，可在STATION菜單中用于設置與STATION相關的值。
第3節全面描述了所有可用的功能塊。有關調諧指南，請參閱第9.2節“自動調諧”
程序或請求AM-35數字控制器調諧。
注意
本用戶手冊包括MPU控制器板提供的功能
固件版本1.3和2.0至2.40。這些增強主要出現在
第2節和第3節。它們由短語“在版本1.3及更高版本中”或
文本中的“V1.3”或“V2.4”。
2.1車站功能塊
永久性且可在車站菜單級訪問的功能塊：
FCO庫………工廠配置選項庫STATN………站參數安全性
時鐘………實時時鐘（需要固件V2.2或更高版本和RTC/CB板
以太網……以太網通信（需要固件2.4和以太網板）
2.2站硬件I/O塊
配置期間可用的功能塊取決于控制器中安裝的硬件。這些塊可以在循環中選擇，但作為固定資源，一旦選擇，將不再可用。左派
列顯示每個塊的最小和最大數量，右列顯示
每個電路板。3
AIN1-4模擬輸入MPU控制器板（3）、I/O擴展器板（1）
AINU1-2模擬輸入，通用I/O擴展器板（2）
AOUT1-3模擬輸出MPU控制器板（2）、I/O擴展器板（1）
DIN1-4數字輸入MPU控制器板（3）、I/O擴展器板（1）
DINU1-2…………數字輸入，通用…………I/O擴展器板（2）
DOUT1-2數字輸出MPU控制器板（2）
ROUT1-2……繼電器輸出……I/O擴展器板（2）
2.3回路功能塊
根據需要，在每個循環中，以下塊可用，數量如下（如果沒有，數量為1顯示了數字）。某些塊（例如A/M、偏置）只能在每個環路中使用一次。其他（如添加）
在循環中可重復使用，并可使用到指定的最大數量。每次可重用塊
在循環中選擇，將自動分配新的實例編號（即ADD01、ADD02）。每個循環
可以有一個操作員顯示塊（即ODC或ODS）。顯示塊定義循環的顯示方式
When adding an I/O Expander board to a Standard Case (case Option 2, with black Side Entry
Connectors), order connector kit PN 16353-133 to obtain terminals 27-52.
? When adding an I/O Expander board to a Standard Case with Ethernet connector (case Option 4, with gray
or green Direct Entry Connectors), no additional connectors need be ordered.
? For field installation of this kit, see the supplied Kit Installation Instruction (15900-390).
DESCRIPTION QUANTITY
I/O Expander Board - Do not remove Board from static shielding
bag until it is to be installed.
1
Range Resistor and Reference Junction Kit, see below 1
PN16353-49 Range Resistor and Reference Junction Kit - This kit is supplied with the above I/O Expander
Board Kit and with a factory shipped Moore 353 with Expansion Board option 1. CONFIGURATION OVERVIEW
Configuration enables a user to select function blocks, stored in the controller, from an available list and enter
appropriate block parameters to implement a specific control strategy. Although configuration affects the entire
station, the controller partitions related control implementations into LOOPS. A maximum of 99 loops can be
configured and 25 can have operator displays that are mapped to network communications2
.
Each LOOP can contain the function blocks listed in the following paragraphs. Signals can be connected between
function blocks within the LOOP as well as between loops. Also, there are several STATION function blocks that
are fixed and available in the STATION menu for setting station related values.
Section 3 fully describes all available function blocks. For tuning guidelines refer to Section 9.2 Autotune
Procedure or request AM-35 Digital Controller Tuning.
NOTE
This User’s Manual includes the functionality provided by MPU Controller Board
firmware Versions 1.3 and 2.0 through 2.40. These enhancements appear mainly in
Sections 2 and 3. They are identified by the phrase “in version 1.3 and higher” or simply
“V1.3” or “V2.4” in text.
2.1 STATION FUNCTION BLOCKS
Function blocks that are permanent and accessible at the STATION menu level:
FCO LIB............Factory Configured Options Library
STATN...............Station Parameters
SECUR ..............Security
CLOCK .............real time CLOCK (requires firmware V2.2 or higher and RTC/CB board
ETHERNET......Ethernet Communications (requires firmware 2.4 and Ethernet board)
2.2 STATION HARDWARE I/O BLOCKS
Function blocks that are available during configuration depend on the hardware installed in the controller. These
blocks can be selected within a LOOP but as fixed resources, once selected, are no longer available. The left
column shows the minimum and maximum quantities of each block and the right column shows the quantity for
each circuit board.3
AIN1-4 .............Analog Input...................................MPU Controller Board (3), I/O Expander Board (1)
AINU1-2 ............Analog Input, Universal .................I/O Expander Board (2)
AOUT1-3 ...........Analog Output................................MPU Controller Board (2), I/O Expander Board (1)
DIN1-4 ..............Digital Input ...................................MPU Controller Board (3), I/O Expander Board (1)
DINU1-2 ............Digital Input, Universal..................I/O Expander Board (2)
DOUT1-2 ...........Digital Output.................................MPU Controller Board (2)
ROUT1-2 ...........Relay Output ..................................I/O Expander Board (2)
2.3 LOOP FUNCTION BLOCKS
The following blocks are available as needed within each loop in the quantities indicated (the quantity is one if no
number is shown). Some blocks (e.g. A/M, BIAS) can be used only once within each LOOP. Others (e.g. ADD)
are reusable within a LOOP and can be used up to the maximum number indicated. Each time a reusable block is
selected within a LOOP, a new instance number will automatically be assigned (i.e. ADD01, ADD02). Each LOOP
can have one operator display block (i.e. ODC or ODS). The display block defines how the loop will be displayed
