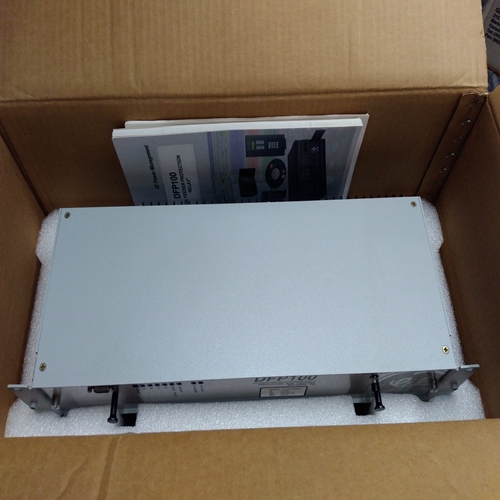

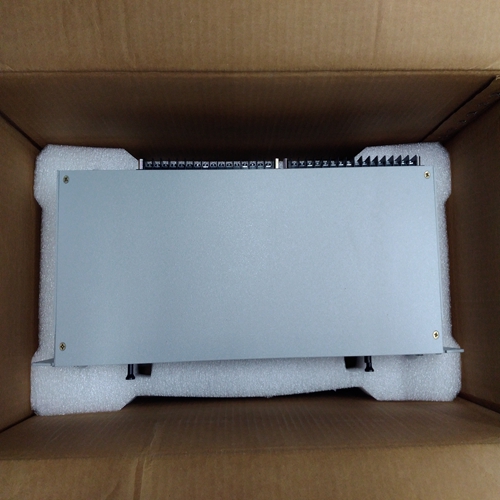

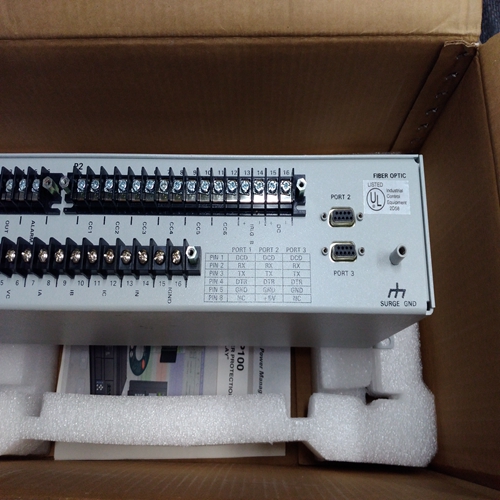

GE DFP14C1N000GB控制模塊
如果滿載時為6伏（或與負載成比例的較低電壓小于無法獲得100%），并且已檢查相位，并且正確，電流互感器可能尺寸錯誤。滿負荷時，電流互感器輸出必須為3至7A（標稱5A）。
可能需要降低系統中每個單元的負載信號電壓在極差的系統動力學的情況下低至3V。如果您的系統
需要低至3 V的負載信號電壓，請咨詢伍德沃德以獲取建議
尋找可能的補救辦法。下垂調整當發電機組處于以下狀態時，有必要調整下垂電位計：
以在下垂模式下操作。負載傳感器的下降通常表示為：作為百分比，并通過以下公式計算。
%下垂=空載速度-滿載速度
空載速度x100設置下垂的方法取決于發電機組的負載是否：隔離負載或無限總線。
設置隔離負載的降速
1.斷開連接至端子14的下垂觸點。
2.啟動原動機并調整額定轉速電位計空載時的額定轉速。
3.施加全負荷*
4.調整下垂電位計以獲得所需速度。
例如：在60 Hz下運行，在滿載下57 Hz表示5%的下降。
*-如果只有50%的負載是可能的，58.5 Hz將表示5%的下降（見圖3-3).
針對公用設施設置下垂使用以下步驟設置下垂和負載增益電位計：公用事業作為唯一的負載。
1.在以下情況下計算發電機的滿載速度（或頻率）：以100%負載運行。
空載頻率=額定頻率x（1+下降%）
示例：額定頻率=60.0 Hz
所需下垂=3%（0.03）
空載頻率=60 x（1+0.03）=61.8 2。以步驟1中計算的速度空載運行發電機。記錄速度設置設備的設置：
?帶有鉛筆標記的電位計記錄設置。
?MOP或其他測量并記錄速度設置值電壓（控制處）。
3.將系統速度降低到額定（頻率）。
4.完全順時針預設負載增益和下降電位計（be小心不要過度扭轉鍋）。
如果在閉合斷路器時，裝置上的負載迅速增加，打開斷路器并關閉機組。檢查CTs和PTs。允許機組繼續裝載，或在不糾正此情況的情況下繼續操作系統可能導致設備損壞，人員受傷或死亡。
5.同步、閉合發電機斷路器，并通過將速度設置增加到步驟2中記錄的設置。
步驟6和7中的調整是非線性的。更改小增量以防止過載。
6.通過轉動下垂電位計增加裝置上的負載逆時針旋轉，直到負載增益電壓讀數為6.0 Vdc*。
7.通過逆時針轉動負載增益電位計增加負載，直到負載處于所需的100%值。
f 6 volts at full load (or a lower voltage proportional to a load less than
100%) cannot be obtained, and the phasing has been checked and is
correct, the current transformers are probably the wrong size. The currenttransformer output must be from 3 to 7 A (5 A nominal) at full load.
It may be necessary to reduce the load-signal voltage of each unit in the system
to as low as 3 V in cases of extremely poor system dynamics. If your system
requires a load-signal voltage as low as 3 V, consult Woodward for suggestions
for possible remedies. Droop Adjustment
Adjustment of the DROOP potentiometer is necessary when the generator set is
to be operated in the droop mode. Droop in a load sensor is usually expressed
as a percentage and calculated by the following formula.
% Droop =
No Load Speed – Full Load
Speed
No Load Speed
x 100
The method of setting droop depends on whether the load of the generator set is
an isolated load or an infinite bus.
Setting Droop for an Isolated Load
1. Open the droop contact connected to terminal 14.
2. Start the prime mover and adjust the RATED SPEED potentiometer for
rated speed with no load.
3. Apply full load. *
4. Adjust the DROOP potentiometer to give the desired speed.
Example: Operating at 60 Hz, 57 Hz at full load indicates 5% droop.
*—If only 50% loading is possible, 58.5 Hz would indicate 5% droop (see Figure
3-3).
Setting Droop when Against Utility
Use the following procedure to set the Droop and Load Gain potentiometers with
the utility as the only load.
1. Calculate the fully loaded speed (or frequency) of the generator when
running at 100% load.
No Load frequency = rated frequency x (1 + droop %)
Example: Rated frequency = 60.0 Hz
Desired droop = 3% (0.03)
No Load Frequency = 60 x (1 + 0.03) = 61.8 2. Run the generator at the speed calculated in step 1, with no load. Record
the setting of your speed-setting device:
? Potentiometer—record setting with a pencil mark.
? MOP or Other—measure and record the value of the speed-setting
voltage (at the control).
3. Reduce system speed to rated (frequency).
4. Preset both the Load Gain and Droop potentiometers fully clockwise (be
careful not to overtorque the pot).
If when you close the breaker, the load on the unit increases rapidly,
open the breaker and shut the unit down. Check the phasing of the
CTs and PTs. Permitting the unit to continue to pick up load or
continuing to operate the system without correcting this condition
may cause damage to equipment, and injury or death to personnel.
5. Synchronize, close the generator breaker, and increase the load by
increasing the speed setting to the setting recorded in step 2.
The adjustments in steps 6 and 7 are non-linear. Make changes in
small increments to prevent overload.
6. Increase the load on the unit by turning the Droop potentiometer
counterclockwise until the Load Gain Voltage reads 6.0 Vdc *.
7. Increase load by turning the Load Gain potentiometer counterclockwise until
the load is at the desired 100% value.
