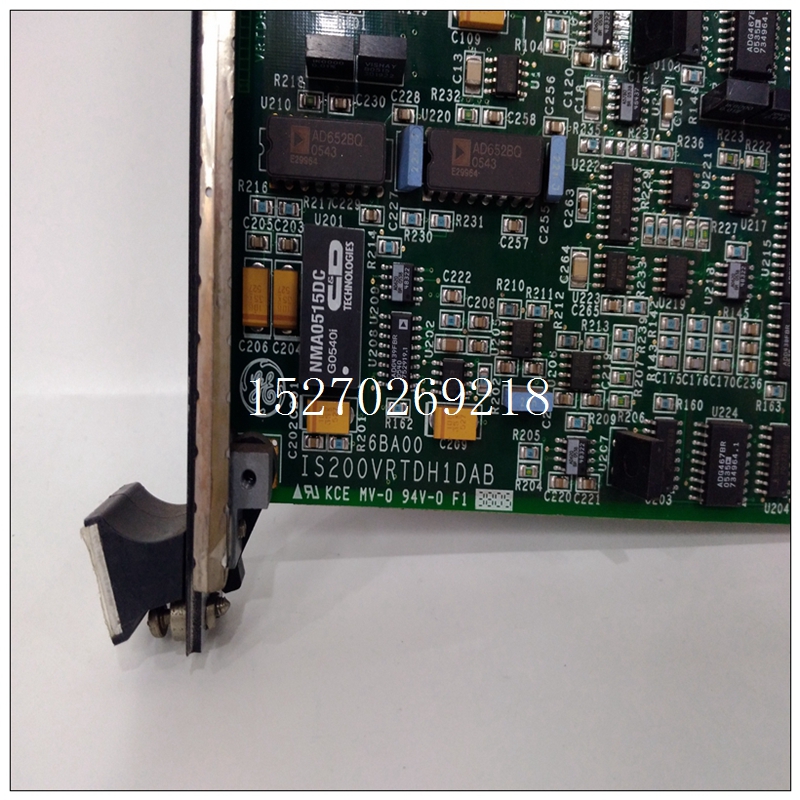

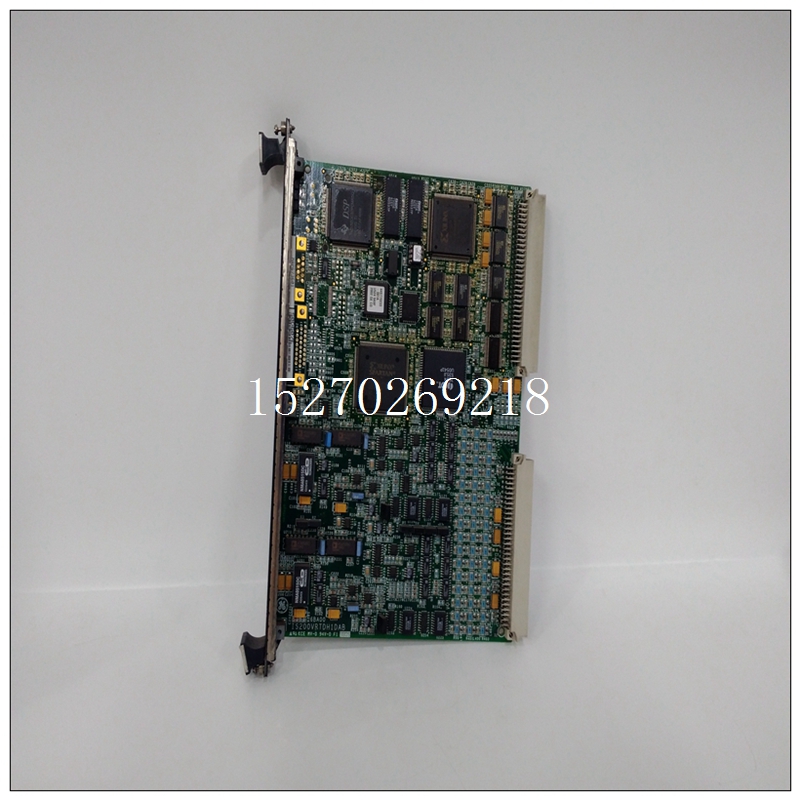

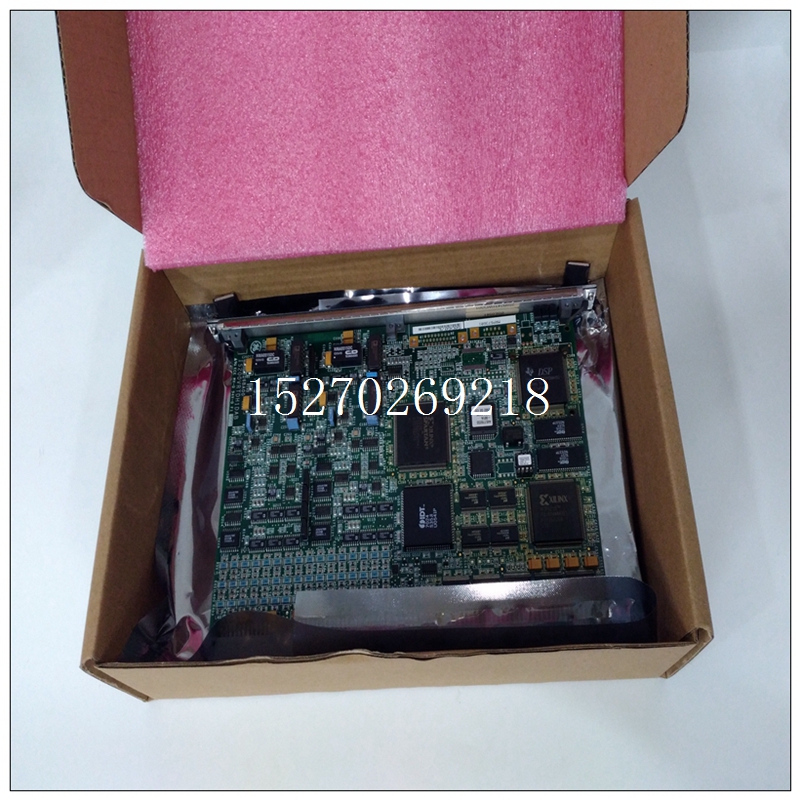

IS200VRTDH1DAB燃機模塊
例宏發繼電器型號為HF46F-G系列,其規格書中給出繼電器觸點材質分為兩種材料：AgSnO2和AgNi，即：HF46F-G/XXT（帶T）觸點材料為AgSnO2；HF46F-G/XX（不帶T）觸點材料為AgNi。該系列的規格書中對不同材料觸點的應用也做了區分，如下：
1）AgSnO2常用于容性負載、感性負載、馬達負載等會產生浪涌電流的應用場合。
2）AgNi常用于阻性負載，電流穩定的場合。
IS200VRTDH1DAB燃機模塊那么，對于開關電源輸入端使用的繼電器應用，后端實際負載一般都會有電感、電容等導致浪涌電流出現的器件，所以在選擇繼電器時就應該使用觸點材料為AgSnO2的繼電器。
繼電器的失效一般有以下幾種：繼電器內部多余物、觸點表面污物、工藝結構不當、觸點燒蝕，粘連、銀離子遷移、外部應用導致簧片位移。
這些失效模式大部分是由于繼電器的生產工藝控制不當引起的，因此對于繼電器生產廠家來說，改善生產環境、完善質量控制及檢驗制度對于預防繼電器頻繁失效將會起到非常關鍵的作用。此外，用戶必須依據實際使用要求，首先優選使用類型，再審慎確定所需的功能特性與物理特性（包含環境適應性要求、輸入、輸出參數、時間參數、觸點壽命、體積、重量、安裝尺寸、安裝方式、密封性等），從而選用適合的繼電器，對應避免使用過程中導致的失效也有重要意義。開關電源實際工作過程中，即使繼電器觸點短路失效產品也可正常工作，因此在使用過程中很難發現。而一旦繼電器觸點短路失效，較大的輸入沖擊電流就會影響產品工作的可靠性，也可能因?yàn)檩^大的輸入沖擊電流導致前端供電系統的異常報警。預防這種情況出現的方案是設計前期把握好電路參數的選擇和選擇符合該電路特性使用的繼電器型號。全球領先的AC/DC和DC/DC轉換器制造商RECOM推出1.2kW AC/DC電源RACM1200-V。該轉換器是由RECOM 在奧地利開發并在歐洲生產制造的，已獲得所有醫療應用的相關認證。隨著運輸路線和供應鏈的日益縮短，RECOM正致力于可持續性的發展。
機器人是需要使用超過 1kW 電源的一個例子。
General component layoutAccording to the functional units of the circuit, the layout of all components of the circuit shall comply with the following principles:
① Arrange the position of each functional circuit unit according to the circuit flow, so that the layout is convenient for signal flow, and keep the signal in the same direction as much as possible.
② Take the core components of each functional circuit as the center and layout around it. Components and parts shall be evenly, neatly and compactly arranged on the PCB to minimize and shorten the leads and connections between components and parts.
③ For the circuit working at high frequency, the distribution parameters between components should be considered. In general, the components and parts should be arranged in parallel as far as possible, which is not only beautiful, but also easy to assemble and weld, and easy to mass produce.
④ Components and parts located at the edge of the circuit board are generally not less than 2 mm away from the edge of the circuit board. The best shape of the circuit board is rectangle.
