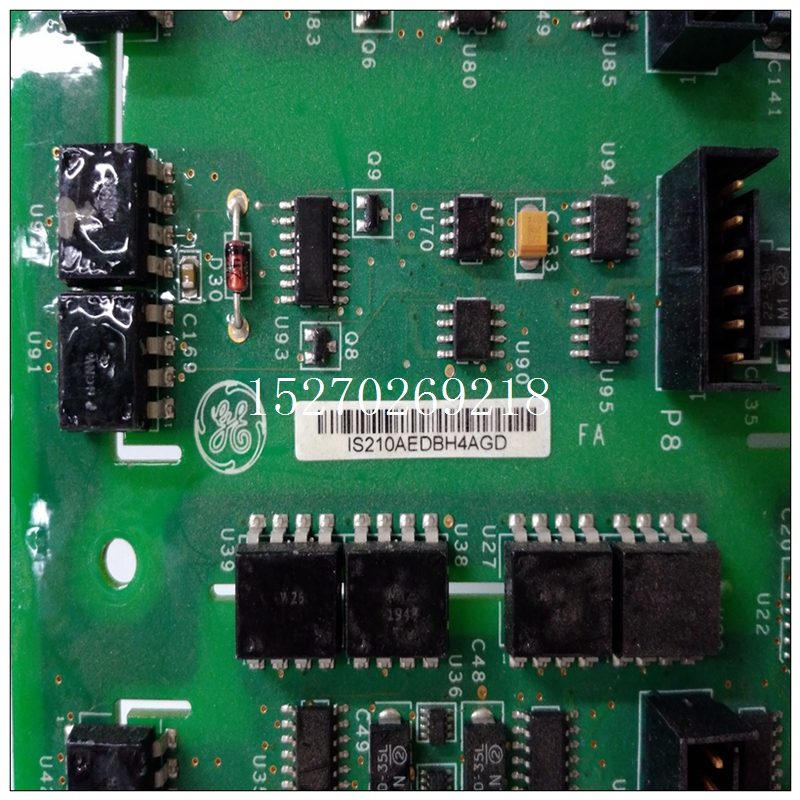

IS210AEDBH4AGD燃機電氣
雖然水泵在低速運行時,電動機的工作電流較小。但是,當用戶的用水量變化頻繁時,電動機將處于頻繁的升、降速狀態,而升、降速的電流可略超過電動機的額定電流,導致電動機過熱。因此,電動機的熱保護是必需的。對于這種由于頻繁地升、降速而積累起來的溫升,變頻器內的電子熱保護功能是難以起到保護作用的,所以應采用熱繼電器來進行電動機的熱保護。
IS210AEDBH4AGD燃機電氣在主要功能預置方面,最高頻率應以電動機的額定頻率為變頻器的最高工作頻率。升、降速時間在采用變頻器內置PID調節。升、降速時間應盡量設定得短一些,以免影響由PID調節器決定的動態響應過程。控制原理如下:
變頻器控制特點
1、節電
優化的節能控制軟件,使水泵實現最大限度地節能運行。
2、節水
根據實際用水情況設定管網壓力,自動控制水泵出水量,減少了水的跑、漏現象。
3、運行可靠
由變頻器實現泵的軟起動,使水泵實現由工頻到變頻的無沖擊切換,防止管網沖擊、避免管網壓力超限,管道破裂。
4、聯網功能
采用全中文工控組態軟件,實時監控各個站點,如電機的電壓、電流、工作頻率、管網壓力及流量等。并且能夠累積每個站點的用電量,累積每臺泵的出水量,同時提供各種形式的打印報表,以便分析統計。
5、控制靈活
分段供水,定時供水,手動選擇工作方式(外圍控制電路暫未提供)。
6、自我保護功能完善
如某臺泵出現故障,主動向上位機發出報警信息,同時啟動備用泵,以維持供水平衡。萬一自控系統出現故障,用戶可以直接操作手動系統,以保持供水。
Therefore, information transmission and transformation devices must be set between PLC and production process. This device is the input / output (I / O) module. Different signal forms require different types of I / O modules. For PLC, the signal forms can be divided into four categories: digital input signal, digital output signal, analog input signal and analog output signal.
After the selection of PLC model and input / output (I / O) module, firstly, the overall configuration diagram of PLC system is designed. Then draw the I / O wiring diagram, i.e. PLC input / output electrical schematic diagram, according to the process layout and referring to the specific PLC related instructions or manuals.
The number of input / output points after the selection of PLC model is an important factor to determine the price and design rationality of the control system. Therefore, when the same control function is completed, the input / output points can be simplified through reasonable design.
Safety circuit is a circuit that protects the load or control object and performs interlocking control to prevent operation error or control failure. While directly controlling the load, the safety protection circuit also inputs signals to PLC to facilitate PLC protection processing.
